Commit Stage

Part of the Extended Instruction Pipeline .

• Instructions are only allowes the change the architectual state in the commit stage.

• Resources of instructions are freed

• Commits always happen in program order, even in Out-Of-Order Execution Processors

• Speculative instructions can’t commit until it is verified that they should have been executed

• On x86 with mutliple uops (see CISC decoding ) a instruction commits if all uops have completed

  • In some cases partial commits are allowed

Recovery from Exceptions #

• Exceptions are handled in commit, since they should only be executed if they are not speculative; Commit stage is the correct stage for that.
• Steps:
  1. Flush all instructions in flight
  2. Recover from the speculative state of the execution of the instruction that triggered the exception
  3. Redirect front end to the exception handler

Recovery from Branch Misprediction #

• Recovery from Branch Misprediction

Retire Register File (RRF) #

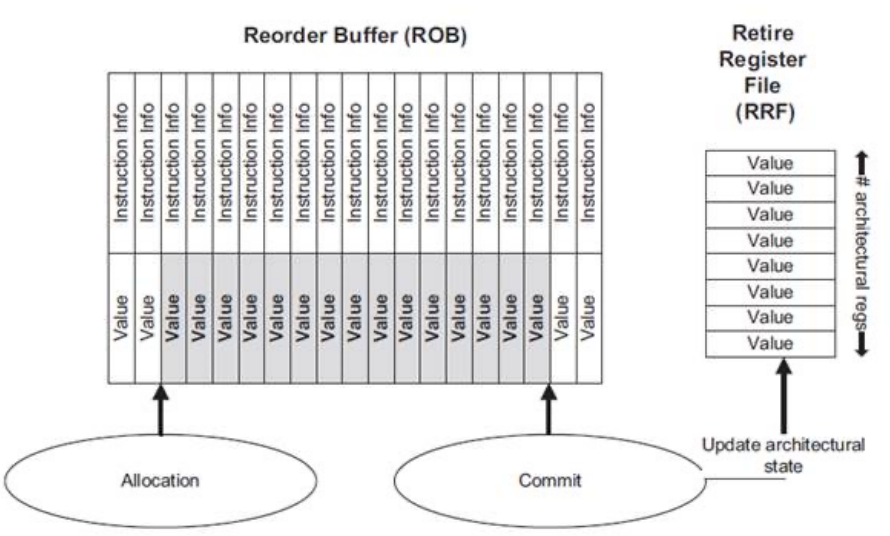

• When an instruction of the reorder buffer commits its value is final and put into the Retire Register File (RRF).

• In that case all consumers waiting for that value should be updated

• All instructions in the issue need to be checked Reorder Buffer (ROB) ID needs to be chenged to the architectual register

• Nothing else to be done, new instuctions fetch data from the RRF; Instructions in the issue queue copied it due to the wakeup signal

In combination with the Merged Register File #

• Nothing to be done, speculative as well as final values are in the MRF.

• nothing to be done

• registers are not moved, nothing to be done

• Register reclamation is more complicated -> Register can only be freed if another instruction commits that writes to the same logical register
