Compiler support for preventing stall cycles

Assumption:

instructions	stall cycles
FP-ALU -> Store	2 cycles
FP-ALU -> FP-ALU	3 cycles
Load -> FP-ALU	1 cycle
Load -> Store	0 cycles
Jumps	1 cycle

Rescheduling instructions #

for (int i = 1000; i > 0; --i) {
  x[i] = x[i]+s;
}

Code Snippet 1: sample C code

loop:
    load  f0, 0(r1)    ;; f0 = x[i]
    add   f4, f0, f2   ;; x[i] + s
    store f4, 0(r1)    ;; x[I] = _
    addi  r1, r1, -8   ;;
    bne   r1, r2, loop ;; branch r1!=r2

Code Snippet 2: trivial compilation

loop:                  ;; cycle
    load  f0, 0(r1)    ;; 1
    stall              ;; 2
    add   f4, f0, f2   ;; 3
    stall              ;; 4
    stall              ;; 5
    store f4, 0(r1)    ;; 6
    addi  r1, r1, -8   ;; 7
    stall              ;; 8
    stall              ;; 8
    bne   r1, r2, loop ;; 9
    stall              ;; 10

Code Snippet 3: sample execution

A better compilation using better instruction scheduling #

loop:
    load  f0, 0(r1)    ;; 1
    addi  r1, r1, -8   ;; 2
    add   f4, f0, f2   ;; 3
    stall              ;; 4
    bne   r1, r2, loop ;; 5
    store f4, 8(r1)    ;; 6

Loop unrolling #

for (int i = 1000; i > 0; --i) {
  x[i] = x[i]+s;
}

for (int i = 1000; i > 0; i-=4) {
  x[i-0] = x[i-0]+s;
  x[i-1] = x[i-1]+s;
  x[i-2] = x[i-2]+s;
  x[i-3] = x[i-3]+s;
}

Code Snippet 4: The same code but unrolled by a factor of 4

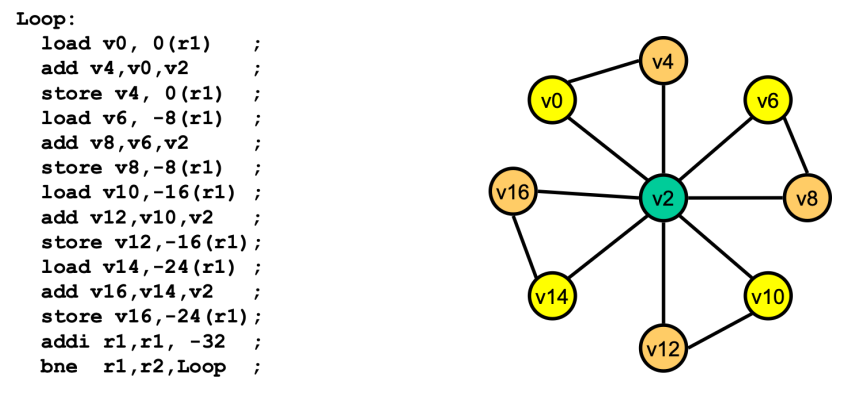

Colors are given by Register Allocation :

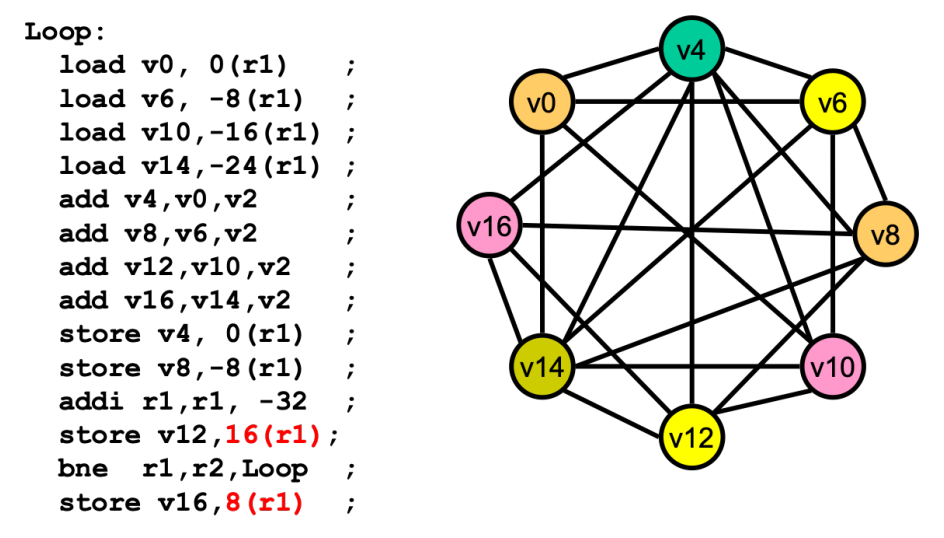

Figure 2: after reordering: no stall after loads: the first add can start after the load block

Software pipelining #

Loops are restuctured that in each loop iteration the different stages of different iterations are handled (less dependencies between instructions) -> only works if no loop dependencies

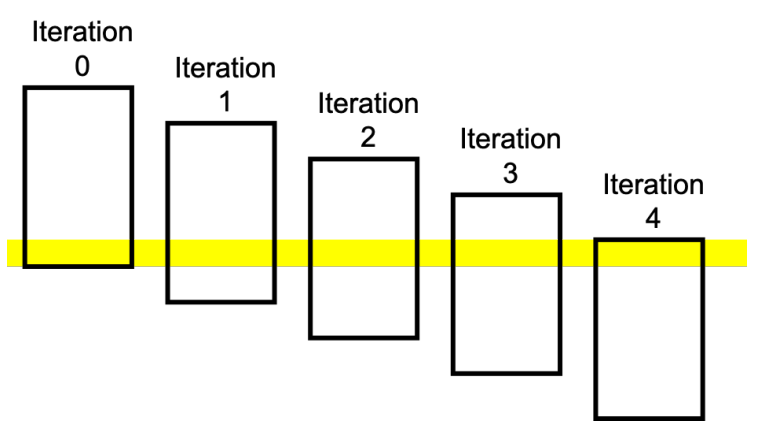

Figure 4: Horizontal yellow line: an interation of the software pipelined loop

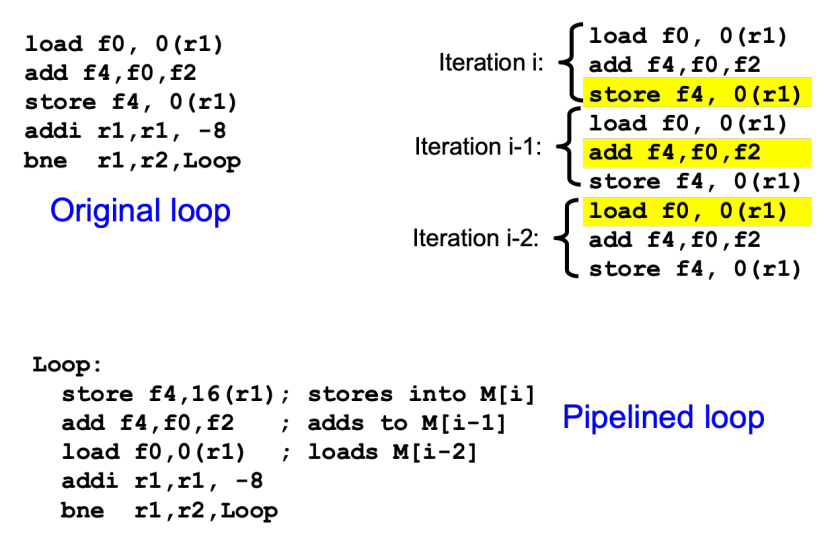

Figure 5: Software pipelined code transformation, startup and winddown clode have been omitted

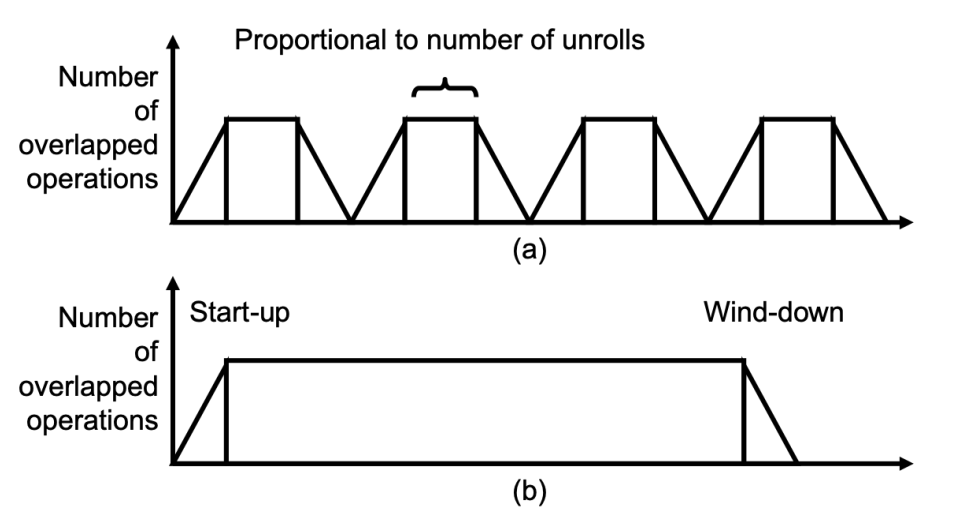

Software pipelining vs Loop unrolling #

Advantage of Loop unrolling:

Reduce loop overhead

Advantage of Software pipelining:

shorter code
Reduces area of low overlap

Advantage of both:

Use independent operations from different loop iterations

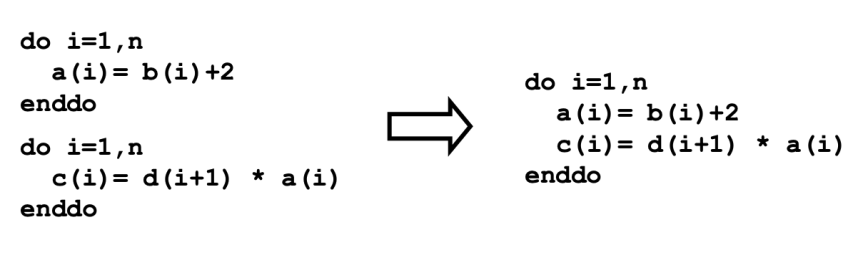

Loop fusion #

Combine loops to only have to iterate once. Not always possible. Only possible if data dependencies are the same before and after the program transformation.
