Instruction Decode Stage
Part of Instruction Pipelining .
RISC decoding #
- Fixed instruction length makes identifying instructions easier
- Instructins are simple: only generate few control signals in the pipleine
- RISC decoder can be programmed with simple programmable logic array or look-up tables
CISC decoding #
- Have to be translated on the fly
- Single CISC instruction can represent mulitiple RISC instructions:
;; CISC
add [eax], ebx
;; RISC
load r0, ds:[eax]
add r1, r0, ebx
store ds:[eax], r1
-

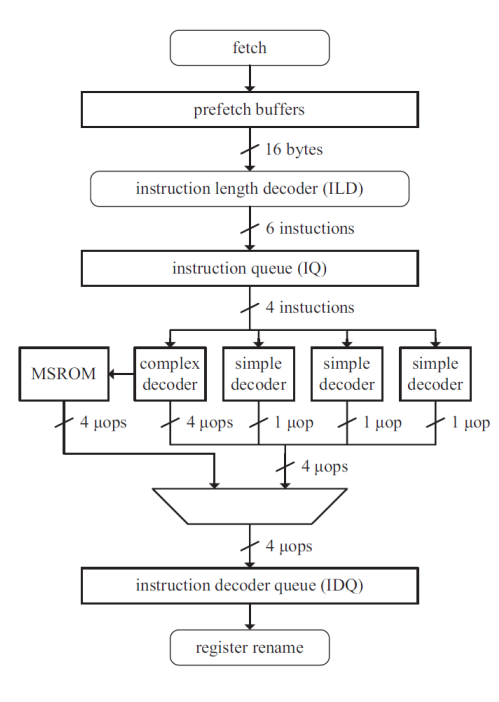

To handle this complexity, modern x86 processors translate CISC instructions into RISC-like microoperations (uops)
-
Also contains Loop Stream Detector
Instruction length decode (ILD) #
- Identifies instructions
- Decodes prefixed
- Common instructions handled in one cycle
- only length changing prefixes require 6 cycles
Dynamic translation #
- simple decoder: simple instructins -> produces single uops
- complex decoder -> leads up to 4 uops
