Issue Stage

Part of the Extended Instruction Pipeline .

In-order issue

Instructions are issued in the program order

Out-of-order issue

Instructions can be issued in another order

In-Order Execution #

• “Static instruction scheduling”
• Check the oldest instruction in the issue queue if it is ready to execute (instructions are ready, and functional unit is available)
• Then send it

Example #

div  f0,f2,f4
add  f10,f0,f8
load f12,f8,10

• Divison blocks all instructions
• Add is True dependent
• Load is independent; could be started before division is finished but In-Order execution prevents this

Out-Of-Order Execution #

• “Dynamic instuction scheduling”

• Early concept:

  • Have scoreboard keeping track of Data Dependences and state of the functional unit
  • Issue instructions as soon as the Data Dependences are fulfilled

• Implementations:

  • Tomasulo Algorithm (Reservation Stations)
  • Unified Issue Queue

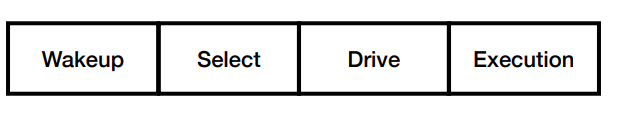

Read before Issue #

• The way Tomasulo Algorithm and Unified Issue Queue work.
• Issue queue stores the value of the operands

Instruction Wakeup #

• Entries of the inssue queue have to be updated when operands get ready -> This is done via the bypass network

Instruction Selection #

• Choose subset of ready instructions and issue them given an issue width (how many instructins can be issued per cycle (Superscalar Processor )).
• Once instruction has been selected, it’s issue queue spot can be reclaimed.

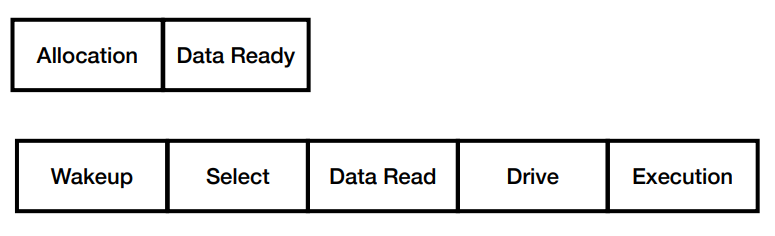

Read after Issue #

• Issue queues do not contain the operand data (less space and copying needed)
• Operands are read when issuing

• Downside: register file needs many read ports
  • in case of Read before Issue, the data is already in the issue queue and can be forwarded to the FU directly

Distributed Issue Queue #

• Divide issue queues into clusters (shorter issue queues)
• Arbitter decides into which cluster an instruction should go

Handling port read issues #

Two ways:

1. Read after Issue:
   • Active scheme: Possibly cancel issuing if not enough read ports available
   • Reactive scheme: Possibly cancel already issued instructions if not enough read ports available

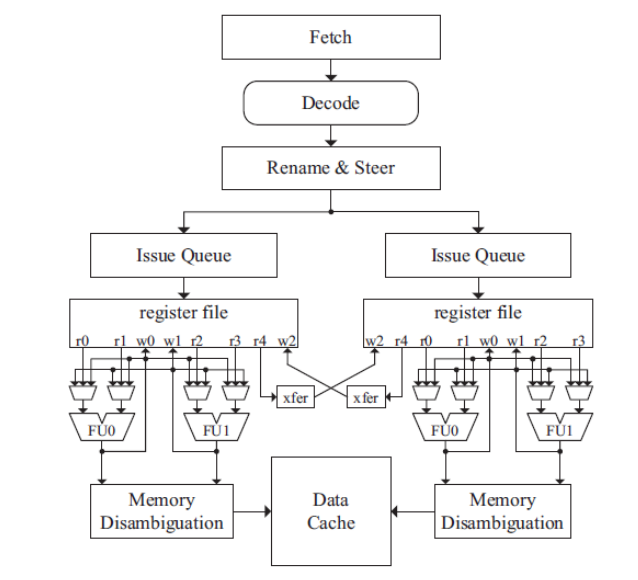

2. Separate register files per cluster
   1. Either replicated register files (need to be kept in sync)
   2. Or distributed register files (mechanism to query remote registers necessary)
