Intel Knights Landing (KNL)

• Many integrated cores (MIC) architecture
  • high thread prallelism
  • high data parallelism
  • high memory bandwidth
  • compatible to x86 ISA

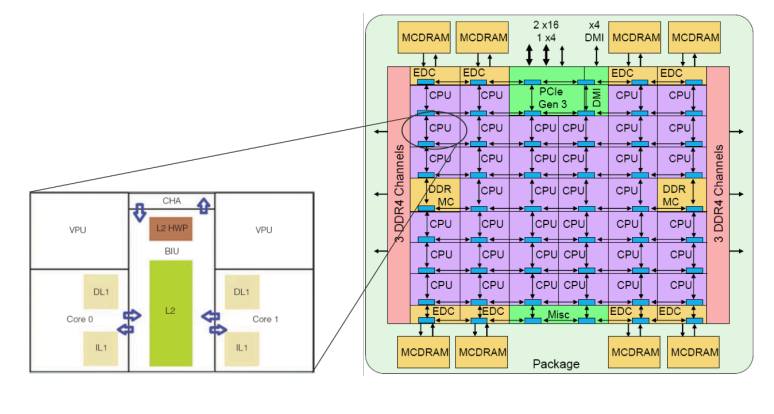

• 38 compute tiles (36 active)
  • 2 cores per tile -> 72 cores

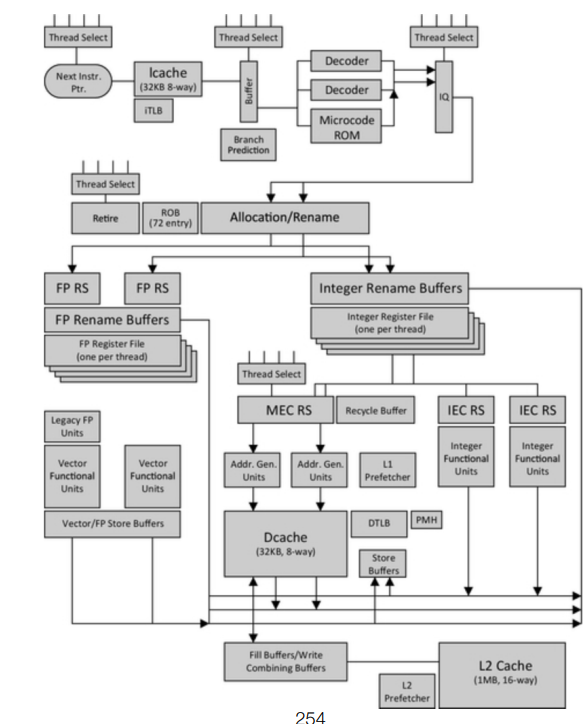

Core architecture #

• Reorder buffer with 72 entries
• 72 physical registers
• Architectual register file
• 2 operations wide (Superscalar Processor ?)
• Reservation stations in Integer and FP FUs and memory execution unit

  • Integer execution unit (2 units):

    • 12 entry reservation station
    • fully Out-Of-Order Execution
    • Read before Issue

  • Memory execution unit:

    • 12 entry reservation station
    • issued in order, can be executed Out-Of-Order
    • Stores are kept in store buffers, so loads can find them there
    • Stores are committed in porgram order
    • Implements scatter/gather operations

  • Floating point units (2 VPUs)

    • avx512
      • 8 double precision vector ops
    • Throughput: 16 DP FLops per cycle per VPU -> 32 doubles from both VPUs per cycle per core
    • 20 entry reservation station
      • but no data -> Read after Issue
      • Vector data is big, so copying them there would take bandwidth and cost space

Cache architecture #

• Core private L1 data Cache
  • Write back cache
  • Non-Blocking Cache
• L1 Instruction Cache
• L2 Cache shared along both cores on a tile
